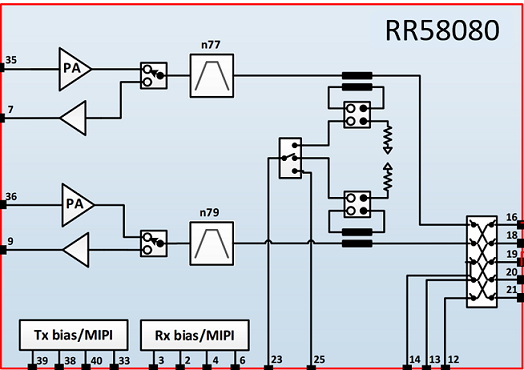

5G NR Solution(RR58080-11)
5G NR Solution(RR58080-11)
产品详情
应用与特点
     ◆     Fully Baseband Agnostic Design
     ◆     5G-NR supporting full n77 (3.3-4.2 GHz) Band/N79(4.4-5.0 GHz)bands
     ◆     Integrated 5G LNA Core with optimal system sensitivity, supporting high-order Carrier
               aggregation
     ◆     Integrated LTCC filtering for  full n77 Band and N79 Band
     ◆     Forward and Reverse Coupler
     ◆     No SRS switch build-in, Flexible config by external SRS switch
     ◆     Full Power APT support without DPD
     ◆     5G n77/n79 Power Class 2 with 3.4V Vcc2
                     ●    MPR-0 Prated: 28.5dBm
     ◆     LTE Power Class 2 High Power User Equipment (HPUE)
     ◆     Optimized for APT DCDC operation, ET compatible with VCC Capacitor Switch (built in cap)
     ◆     Dual MIPI v2.1 compliant 52 MHz RFFE bus for n77/99 CTRL
     ◆     Support DFT-S-OFDM/CP-OFDM waveform up to 100 MHz
     ◆     Compact Low Profile Package Dimension
                     ●    4.5 x 5.5 x 0.75 mm,42-pad configuration
                                                                                                                                                                            ◆      ES: 5/E, MP:7/E
