5G NR Solution(RR58077-11)
产品详情
应用与特点
◆ Fully Baseband Agnostic Design
◆ 5G-NR supporting full n77 (3.3-4.2 GHz) Band
◆ Integrated 5G LNA Core with optimal system sensitivity, supporting high-
order carrier aggregation
◆ Integrated filtering for full n77 Band
◆ Forward and Reverse Coupler
◆ Full Power APT support without DPD
◆ 5G n77 Power Class 2 with 3.4V Vcc2
● MPR-0 Prated: 28.5dBm
◆ LTE Power Class 2 High Power User Equipment (HPUE)
◆ Optimized for APT DCDC operation, ET compatible with VCC Capacitor
Switch (built in cap)
◆ MIPI v2.1 compliant 52 MHz RFFE bus
◆ Support DFT-S-OFDM/CP-OFDM waveform up to 100 MHz
◆ Support Fast SRS Hopping timing requirements
◆ Compact Low Profile Package Dimension

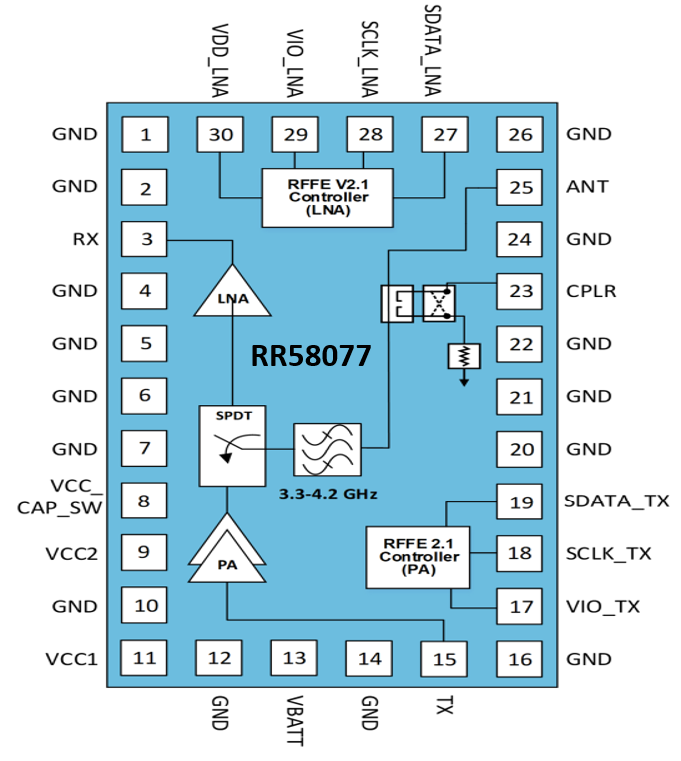

● 3.0 x 5.0 x 0.75 mm,30-pad configuration
