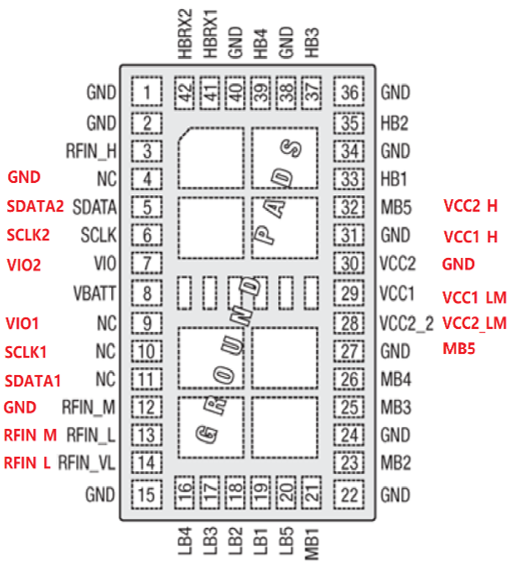

Phase5N+ Solution (RR88643-91)
产品详情
应用与特点
◆ Support B3+N41/B39+N41/B40+N41 EN-DC
◆ Integrate Dual MIPI 2.1
◆ Support LTE, WCDMA, CDMA, TDSCDMA
● FDD LTE Bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 17, 20, 25, 26, 28, 30, 66, 71
● TDD LTE Bands 34, 38, 39, 40, 41
● CDMA Bands BC0, BC1, BC4, BC6, BC10, BC15
● WCDMA Bands I, II, III, IV, V, VIII, IX
◆ Support Uplink CA support for Band 7, 40, 41 (up to 40 MHz)
◆ Support 4G MB and HB HPUE (Power Class 2).
● Vcc=4.5V, Max Linear Pout with 10M12RB=32dBm
◆ Support 5G N41 PC2
● DFT-OFDM, MPR0, Pout=32dBm with Vcc=4.5
● CP-OFDM, MPR3, Pout=27.8dBm with Vcc=4.5
● CP-OFDM with 256 QAM, MPR6.5, Pout=25dBm with Vcc=4.5
◆ Support 5G N1, N3, N5, N8, N7, N28, N40 PC3
● N7, N40:DFT-OFDM MPR0 Pout>30; CP-OFDM MPR3 Pout>26; Vcc=3.8
● N1, N3: DFT-OFDM MPR0 Pout>30.5; CP-OFDM MPR3 Pout>25.5; Vcc=3.8
● N5, N8, N28: DFT-OFDM MPR0 Pout>29; CP-OFDM MPR3 Pout>25; Vcc=3.8
● Can support higher power with higher Vcc if needed
